Think of yourself as a sales person for a manufacturing company where each customer wants something a little different. Someone wants a machine with a 15 HP motor, stainless steel body and 440V setup. Not long after, someone else wants the same machine, but with a different motor, different voltage, maybe even a different material. Now imagine handling hundreds of such requests every month.
Now think about what that means behind the scenes. You can’t realistically create a new product code for every possible combination. It is very messy to handle. On the other hand, trying to manage all these variations manually just opens the door to errors, wrong specs, pricing issues, production delays.
That’s where SAP variant configuration comes in. Rather than creating a new product for each variant it allows you to create a single configurable product and then describe all of the choices within it. That keeps sales, manufacturing and price all on the same page without the mess.
This isn’t a niche concern. India’s manufacturing sector alone recorded gross value added growth of 9.13% in Q2 of FY 2025-26, with the Manufacturing Purchasing Managers’ Index holding at 55.4 in January 2026, firmly in expansion territory. As factories scale output and export volumes to meet that demand, the ability to configure, not just mass-produce, a product correctly the first time becomes a bigger competitive lever, not a smaller one.
In this blog, we’ll see how SAP Variant Configuration actually works, what parts it consists of, how it connects sales to manufacturing and why so many firms use it in SAP S/4HANA.
What is SAP Variant Configuration (VC)?
SAP variant configuration (VC) is a feature in SAP ERP and SAP S/4HANA that helps businesses configure customizable products using predefined rules, characteristics, and dependencies.
Simply put, it is a guided setup process. Instead of picking from a vast list of finished items, users select the features they want and SAP determines if those choices are valid.
If something doesn’t match, such as an incompatible motor and voltage, SAP flags it instantly. If everything is fine it builds the correct product structure automatically.
2026 data: “SAP itself now points customers toward two coexisting engines, the decades-old Classic Variant Configuration (LO-VC) and the newer Advanced Variant Configuration (AVC), which SAP’s own Help Portal and Community pages describe as the toolset for managing customizable products with tighter process and data integration in S/4HANA.”
Why Businesses Need Variant Configuration
Without a proper configuration system, companies often face issues like:
- Too many material masters to maintain.
- Errors during order entry.
- Incorrect BOMs.
- Slow quotation processes.
- Production delays due to wrong specifications.
It also supports manufacturing automation, since the correct data flows directly into production without repeated checks.
This also helps to get better coordination. Sales, engineering, production and procurement all use the same data, which reduces confusion and rework. SAP Variant Configuration is widely used across manufacturing industries, contributing to the growing SAP Module Demand among businesses adopting SAP solutions.
Industries That Use SAP VC
SAP VC is useful in any industry where products can be customized. Some of the examples are:
Automotive
Industrial Machinery
Electronics
Medical Devices
Furniture
HVAC

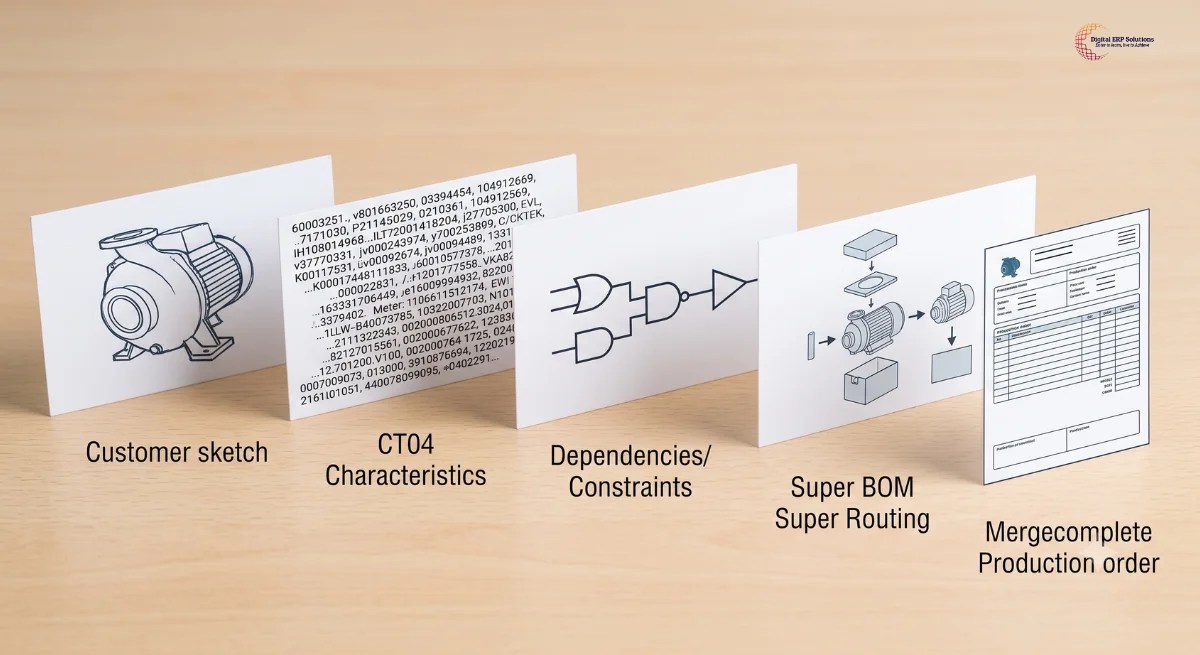

Understanding the Core Building Blocks of SAP Variant Configuration
To understand how SAP VC works, let’s look at its major components.
Characteristics in SAP
These represent the features or attributes of a product. These are like questions you ask yourself during configuration.
For example:
- What motor capacity is needed?
- What voltage should be used?
- What material is required?
- What color should it be?
Each attribute has a set of possible values.
For instance, “Voltage” might include:
- 230V
- 415V
- 440V
And “Housing Material” might include:
- Stainless Steel
- Cast Iron
- Aluminium
Well-structured VC characteristics in SAP make it easy to standardize choices while yet allowing customers to choose.
Classes
The more qualities, the more they have to be arranged. And that’s where lessons come in. For example, an Industrial Pump class might have Capacity, Motor Type, Voltage, Housing Material, Impeller Material.
So instead of assigning each feature, you assign the class. Simplifies and standardizes things. SAP’s documentation states that a configurable material must be assigned to a class of class type 300 in order for its attributes to drive the configuration.
Configuration Profile SAP
It controls how the configuration process works. Every configurable material needs one. It connects the product to the configuration logic and defines how SAP should behave during the process. It handles things like:
- Sales order configuration.
- Configuration screens.
- BOM explosion.
- Routing selection.
- Production processing.
Configurable Material (KMAT)
The configurable material is what the customer actually orders. In SAP, this is usually created using the KMAT material type.
When a customer places an order, SAP combines this material with the selected characteristics and rules to generate the final product.
Manufacturing Strategies Supported by SAP VC
SAP VC supports different production approaches depending on how products are built.
Configure-to-Order (CTO)
In CTO, the product is there but the clients decide the features before manufacturing. For example, a customer ordering an air compressor picks options such as motor size, voltage, etc. SAP implements this in a valid configuration.
Make-to-Order (MTO)
Manufacturing will not commence until the order is placed. For example, an industrial pump manufacturer produces each pump to customer specifications. SAP checks the configuration and generates the required production data.
Engineer-to-Order (ETO)
ETO involves products that need additional engineering work. SAP VC can support part of the process, but engineers often step in for highly customized designs.
Assemble-to-Order (ATO)
ATO keeps standard parts in stock and puts them together when they get an order. SAP VC finds the necessary parts and makes sure that the right way to put them together is done.
How SAP Variant Configuration Works ?
Once your product model is set up, SAP Variant Configuration basically acts as the bridge between what the customer wants and what actually gets built. In simple terms, the flow looks like this:
Customer Inquiry → Sales Order Configuration → Characteristics Selection → Object Dependency Validation → Variant Pricing → Super BOM SAP Explosion → Routing Selection → Production Order → Manufacturing → Delivery
Let’s walk through what really happens at each step.
Customer Inquiry and Quotation
Everything starts when a customer asks for a customized product. Say a customer needs an industrial pump with:
- Flow Rate: 500 LPM
- Motor: 15 HP
- Voltage: 440V
- Housing Material: Stainless Steel
- Explosion-proof motor
The sales staff doesn’t have to wade through a big list of materials; they just choose one configurable product in SAP and begin making decisions depending on what the customer wants.
Sales Order Configuration
Once the customer agrees to the quote, the same configuration moves into the sales order.
At this point, SAP shows all available options based on the characteristics in SAP that were defined earlier. The user just selects the required values, and SAP records everything automatically.
Object Dependency Validation
For example, a motor is unable to handle a specific voltage, or a material is unable to withstand certain conditions.
SAP checks all of this using object dependencies. SAP S/4HANA improves on this with constraint-based configuration, which successfully handles increasingly complex rules.
Variant Pricing
Prices are driven by the consumer. If they want a larger motor or any higher-grade materials the price rises. It will remain lower if they stick to basic selections. SAP does all of this automatically while configuring.
Super BOM Explosion
Once the configuration is confirmed, SAP finds out what components it needs.
Companies don’t need to manage multiple BOMs for each and every product variation. Instead, they have one super BOM in SAP that contains all the possible components.
SAP selects only the necessary bits according to the options chosen.
Routing Selection
Different product variants may require different manufacturing steps.
The basic version would be a standard process, the more advanced version would include some extra testing or finishing. The setting will enable SAP to pick the right path automatically.
Production Order
Once BOM and routing are ready, SAP creates the production order. This order already includes:
- Customer-specific configuration.
- Required components.
- Manufacturing steps.
- Quantities.
- Scheduling details.
Manufacturing and Delivery
Production starts using the generated order.
Since everything has already been validated, operators know exactly what to do, what parts to use and which steps to follow.
It is then shipped to the customer as per their specifications after the manufacture and the quality checks.
Key Components of SAP Variant Configuration
Here are the main building blocks that make all of this work:
Component | Purpose | Example |
Characteristics in SAP | Define product attributes | Voltage, Motor Capacity |
Classes | Group related characteristics | Industrial Pump Class |
Configuration Profile SAP | Controls the configuration process. | Sales Order Configuration |
Object Dependencies | Validate product rules | Motor compatibility |
Variant Tables | Store reusable business rules | Pricing conditions |
Super BOM SAP | Contains all possible components. | Universal machine BOM |
Super Routing | Stores all manufacturing operations. | Assembly and testing routes. |
One thing to note: Variant Tables aren’t just for pricing. SAP documentation shows they’re commonly used to store predefined valid combinations of characteristic values so you don’t have to write complex nested dependency logic for every rule, for example, storing every valid engine-and-transmission pairing in a table instead of coding it as IF-THEN dependencies.
LO-VC vs. AVC: Which Engine Should You Actually Use?
Factor | Classic VC (LO-VC) | Advanced VC (AVC) |
Underlying engine | Traditional ABAP-based rule processing | SAP HANA in-memory processing, integrated with Fiori/UI5 |
Characteristic restriction | Only characteristics explicitly flagged “restrictable” can be used in constraints | All characteristics are treated as restrictable by default, and multi-value characteristics, which classic VC can’t restrict at all, can be used directly in constraints. |
Material variant search | Basic matching | Interactive type matching lets Sales find and pull in partially matching material variants, including ones with deviating characteristics, directly into the sales order. |
UI | SAP GUI-based configuration screens | Modern Fiori-based simulation environment with a live data-model inspector. |
Upgrade treatment | Legacy, still fully supported | Positioned by SAP as the direct successor to LO-VC, and explicitly carried forward as a standard follow-on activity in the SAP S/4HANA 2025 upgrade process. |
SAP SD VC Integration: Bridging Sales and Production
One of the biggest strengths of SAP variant configuration is how it connects sales and production.
Role in SAP SD
Sales teams prepare quotations and sales orders using SAP VC.
They create the product, and then SAP instantly checks to see if the combination is valid and also calculates the pricing.
This means they can give accurate quotes without waiting for engineering input (for standard configurations).
It also builds confidence with customers; they know what they’re ordering is actually possible.
Role in SAP PP
Once the order is confirmed, the same configuration moves into production planning.
SAP automatically:
- Explodes the BOM.
- Select the routing.
- Creates the production order.
Expert Insight: A recurring pattern we see in SAP PP training projects is that configuration errors rarely come from the object dependencies themselves; they come from poorly reused characteristics. Learners who build one clean, well-scoped characteristic and assign it across multiple classes spend far less time debugging Super BOM explosions than those who create near-duplicate characteristics for every product line. Getting the characteristic and class design right at the start saves far more rework than fixing dependency logic later.
Detailed Make-to-Order Product Example
Let’s make this more real with an example. A company manufactures industrial pumps. A customer places an order with these specs:
- Capacity: 500 LPM
- Motor: 15 HP
- Voltage: 440V
- Housing Material: Stainless Steel
- Explosion-proof Motor
The sales agent then launches SAP and picks the configurable materials.
SAP executes all its checks on a schedule. If something is wrong, it gets flagged quickly.
SAP checks and decides on the price.
Then it performs Super BOM SAP explosion and selects only the required components. It also picks the correct routing.
A production order is created automatically with all details included.
The production crew makes the pump, checks its quality and sends it.
Integration with Other SAP Modules
SAP VC is even more powerful when combined with other modules. If you’re new to the SAP ecosystem, understanding the difference between SAP Functional vs Technical Modules can help you see where Variant Configuration fits.
SAP Module | Purpose of Integration |
Sales orders and product configuration | |
Production planning and execution | |
Procurement of required components | |
SAP PLM | Product and engineering data management |
SAP CPQ | Advanced configuration and guided selling |
SAP CRM | Customer relationship management |
SAP IBP | Demand and supply planning |
Cloud-based configuration and pricing services, used when configuration needs to run outside the ERP back end. |
Expert Tip: For SAP MM learners, it’s worth understanding how component procurement is triggered only for the specific parts a configuration actually needs, not the full super BOM, since that’s a common interview question for consultants working on make-to-order environments. If you want to build hands-on SAP PP, SD, or MM skills with real-time project exposure, DigitalERPs offers structured, mentor-led SAP training in Bangalore with placement support.
Common Challenges in SAP Variant Configuration Implementation
Some of the common issues are:
- Poor master data.
- Too many complex rules.
- Hard-to-maintain BOMs.
- Performance issues with large models.
- Lack of proper data governance.
- Limited user training.
Best Practices for Successful SAP Variant Configuration
To get the most out of SAP VC:
- Start with a clear and simple product model.
- Reuse Characteristics in SAP wherever possible.
- Avoid unnecessary complexity in dependencies.
- Build modular configurations.
- Test all possible combinations thoroughly.
- Maintain proper documentation and governance.
SAP Variant Configuration: Final Thoughts from the DigitalERPS Team
SAP variant configuration is not only about controlling product options, it is about making everyday jobs easier for teams working with complex items. It helps you make less mistakes, keep your orders right and keep your sales and manufacturing processes running smoothly.
If you want hands-on experience configuring real SAP PP and SD scenarios, including variant configuration, explore the Digital ERPS SAP training programs in Bangalore or get in touch for a free consultation.
Disclaimer: This article is written for educational purposes to help sales, manufacturing, and SAP professionals understand SAP Variant Configuration concepts, terminology, and workflow. It is not official SAP documentation, legal advice, or a substitute for SAP’s own product documentation.
